CX-1B

An all-round success

We certainly do many things. But if there is one thing we don’t do, it is subordinating acoustics to the loudspeaker look. An unwritten law that makes our work easier by no means. Finally the product should not only satisfy the ears but also the eyes. Regarding the CX-1B, one could be fancy that we indeed might have turned a blind eye to let the distinctive look take the precedence. You can put your mind at rest. Our engineers would rather seal their ears.

In actual fact the CX-1B monitor combines attractive design, functionality and technical innovation in a revolutionary way down-the-line. Therefore the round body isn’t just a guarantor for compact enclosures, ergonomic design and handling as well as inconspicuous elegance, but the result of excellent developmental work optimizing standing wave suppression achieving excellent sound and precise resolution of this true point source. And this one even goes really loud. The according requirements are provided by a sophisticatedly developed coaxial source consisting of a perfectly tuned 8" long excursion driver and a special high frequency unit with aluminium membrane all driven in bi-amped mode.

The CX-1B is supplied by a four-pole speakon connection through a CX-1A. Up to two CX-1B can be supplied by one CX-1A.

Who might think yet, keeping a bigger speaker in sight, errs: With its 37.6 cm length and a weight of 7.2 kg the CX-1B definitely counts to the bonsais among monitors and accommodates truly everywhere. But what is meant by monitor. By pushing the DSP preselector button, the CX-1B morphs to a full top with all its rigging options and its EPS rigging hardware in a second. Whether fullrange mode with an impressive low corner frequency or even deeper with MF-15A subwoofer support, it’s up to your choice. As already mentioned. An all-round success.

Technical Data

System High power 2-way coaxial monitor
Configuration True point source
1 x 8" high excursion 2" VC driver
1 x HF-compression driver with polyamide diaphragm and 1.7" VC
Power Handling 400W + 100W RMS amping power
Frequency Respose 80 – 20,000Hz (+/- 3dB)
Coverage Angle 100° horizontal x 100° vertical
Monitor Angle 35°
Crossover Frequency 2000Hz
Sensitivity 94dB / 1W / 1m – info
Connection 2x Neutrik NL4 Speakon in / out
Impedance Low-mid 16Ω / High 16Ω
Setup Configuration Setups
Further Information FAQs
Enclosure Rigid braced construction of special 12mm lightweight-wood
Finish High density polyurethane-coating
Black
Front Cover Weather-resistant front fabric on coated 1.5mm perforated steel
Width 11.3" (288 mm)
Height 14.8" (376 mm)
Depth 11.8" (300 mm)
Weight 15.9 lbs (7.2 kg)

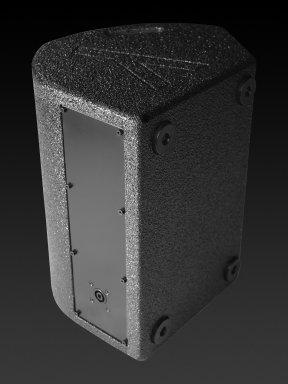

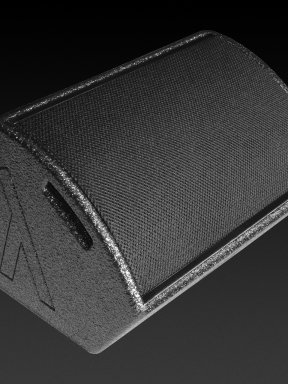

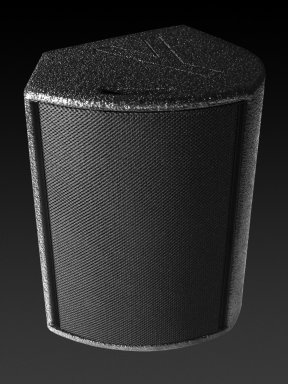

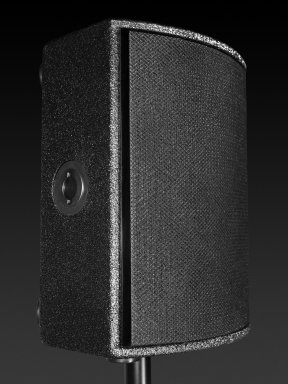

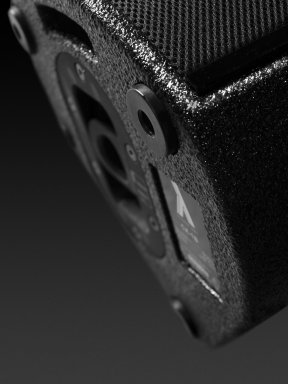

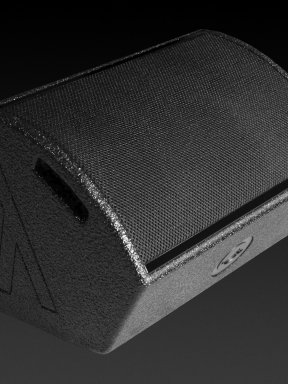

Product Images

Downloads

CX-1B product sheet
(PDF – 0.9 MB)
product details, technical specifications, application examples
CX-1B product images
(JPEGs – 3.5 MB)
High resolution product shots on neutral backdrop
CX-1B product images
(PNGs – 7.2 MB)
High resolution product shots, masked with alpha channel
